Mobile Scanners
Minimum Order Quantity: 1 Piece
Product Brochure
Performance
|
||
Processor | 1.8GHz, quad-core processor | |
Operating System | Android 8.1 Go | |
Memory | 1GB RAM, 8GB ROM | |
Interface | USB Type–C at the bottom | |
Symbologies | 2D:Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417,
QR Code, Data Matrix, DotCode. 1D:Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, Codabar, Code93, Code 11, Plessey, MSI Plessey, RSS. |
|
Depth of Field (Depend on Barcode and Environment) | Code128: 90mm-330mm(12.5mil) EAN13: 50mm-300mm(13mil) PDF17: 50mm-135mm(6.7mil) QR:20mm-210mm(15mil) |
|
Physical
|
||
Dimensions | 158(L) × 59(W) × 18.3(H) mm | |
Weight | 155g (including battery) | |
Display | 2.8” (320×240) capacitive touch screen | |
Keypad | 24 keys | |
Notification | Vibrator, speaker and multi-color LEDs | |
Battery | 3.8V, 3300mAh (non-removable) | |
GPS | GPS (AGPS), GLONASS, Beidou | |
AC Adapter | Fast Charging Supported | |
Multimedia | Speaker * 1, Microphone * 1 | |
Card Slot(For 4G Version) | SIM * 1 | |
Environmental
|
||
-20℃ to 50℃ (-4°F to 122°F) | ||
Storage Temperature | -30℃ to 60℃ (-22°F to 140°F) | |
Humidity | 5% to 95% (non-condensing) | |
Static Discharge | ±12 kV (Air discharge), ±8 kV (Direct discharge) | |
Drop | 1.2m drops to concrete (for six sides, one drop per side) | |
Antibacterial Species | Escherichia coli, staphylococcus aureus | |
Accessory (Optional)
|
||
AC adapter, cable, protective sleeve, wrist lanyard |

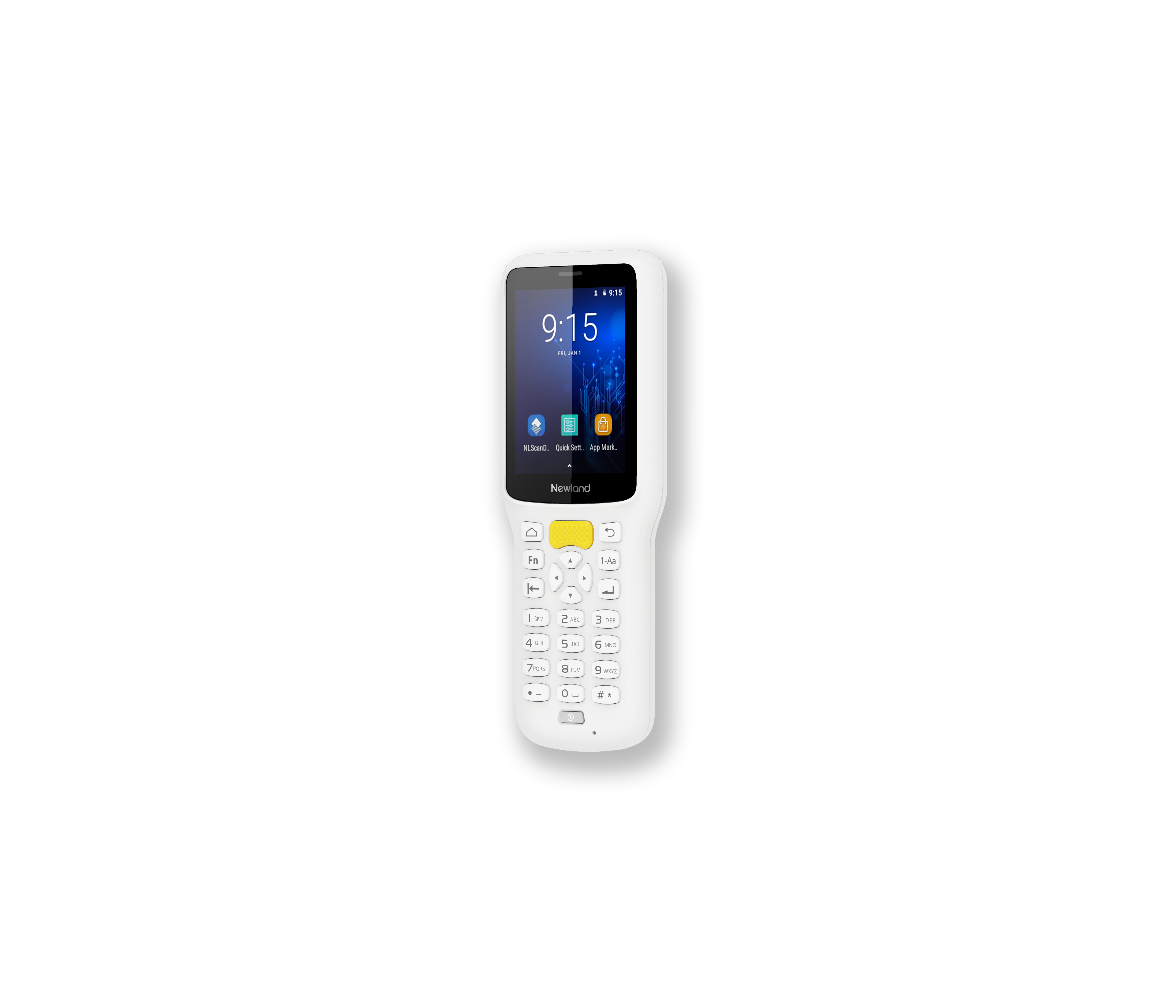

Features:
-
Easy-disinfect Shell
Fit for environment where is frequently cleaned with disinfectant, please refer to the antibacterial species listed on the back.
-
Excellent Performance
The NLS-MT37 is equipped with quad-core, android 8.1 system and high-performance dual band Wi-Fi. It can support AC standard and BT5.0. NLS-MT37’s rugged housing can withstand 1.2m drops to concrete.
-
Superior Barcode Reading Performance
Equipped with Newland’s self-developed high performance barcode reading engine, the NLS-MT37 can decode even poorer quality barcodes, such as soiled or wrinkled labels, with ease. Also, the decoding efficiency is much higher.
-
User-focused Ergonomics
The user-focused ergonomic design renders a lightweight and well-balanced device that reduces stress and fatigue during extended work sessions.
Minimum Order Quantity: 1 Piece
Product Brochure
Performance
|
Processor | 1.5GHz quad-core processor | |
Operating System | Android 8.1 | ||
Memory | 3GB RAM, 32GB ROM | ||
Interface | Micro USB 2.0, Battery charging over USB supported |
Physical
|
Dimensions | 166 ×73 ×26 mm | |
Weight | 330g (including battery) | ||
Display | 4”WVGA (800×480) capacitive touch screen | ||
Keypad | 30 keys (side keys included) with backlight | ||
Notification | Vibration, speaker and multi-color LEDs | ||
Battery | 3.7V, 3800mAh | ||
Camera | 8 megapixels, auto focus, with LED flashlight | ||
GPS | GPS (AGPS) | ||
Expansion | Micro SD card (max. 128GB) slot | ||
AC Adapter | Output: DC5V, 2.0A Input: AC100~240V, 50~60Hz | ||
Expected Battery Life | 10 hours | ||
Expected Charge Time | 4.5-5 hours (charge via AC adapter) |
Environmental
|
Operating Temperature | -20℃ to 50℃ (-4°F to 122°F) | |
Storage Temperature | -30℃ to 70℃ (-22°F to 158°F) | ||
Humidity | 5% to 95% (non-condensing) | ||
Static Discharge | ±15 kV (air discharge), ±8 kV (direct discharge) | ||
Drop | 1.2m drops to concrete (for six sides, one drop per side) | ||
Sealing | IP65 |
Barcode Scanning
|
1D Barcode CMOS (≥ 5 mil) | 1D: Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, Codabar, Code93, Code 11, Plessey, MSI Plessey, RSS. | |
2D Barcode CMOS (≥ 5 mil) | 2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode. |
Depth of Field
|
Depends on Barcode Type and Environment | Code39 (20mil) 90mm-580mm; EAN13 (13mil) 45mm-380mm Code39 (5mil) 75mm-180mm; DM (10mil) 50mm-180mm PDF417 (6.7mil) 70mm-170mm; QR (15mil) 40mm-220mm |
|
NFC
|
13.56MHz RFID | ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693 |
Wireless
|
WLAN RADIO | IEEE 802.11 a/b/g/n, 2.4GHz and 5GHz | |
WWAN RADIO | 2G:GSM (B2, B3, B5, B8) | GSM (B2, B3, B5, B8) | |
WWAN RADIO | 3G:WCDMA (B1, B2, B5, B8); CDMA2000 1X/ EV-DO Rev. A (BC0);
TD-SCDMA (B34, B39) 3G:WCDMA (B1, B2, B4, B5, B8) CDMA2000 1X/ EV-DO Rev. A (BC0, BC1) |
WCDMA (B1, B2, B5, B8); CDMA2000 1X/ EV-DO Rev. A (BC0); TD-SCDMA (B34, B39) | |
WWAN RADIO | 4G:TD-LTE (B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b) 4G:TD-LTE (B41); FDD-LTE (B2, B3, B4, B7, B12, B13, B17) Bluetooth 4.2 LE (Backward-compatible) |
||
WPAN RADIO | Bluetooth 4.2 LE (Backward-compatible) |
Optional | Optional | Battery, AC adapter, cable etc. |

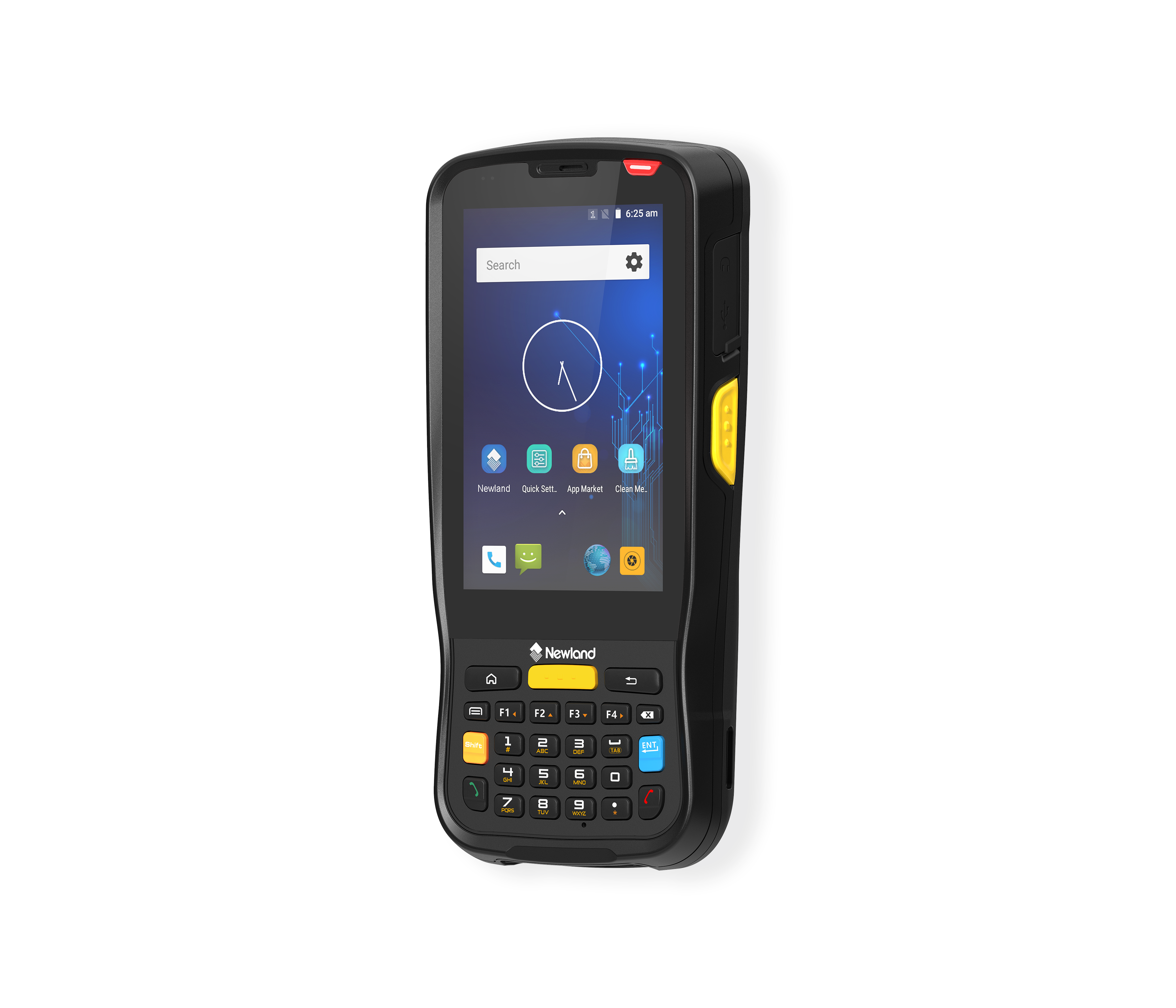

Features:
-
Diverse Functionalities
The NLS-MT65 offers 1D/2D/BT/Wi-Fi/4G /3G /GPS/Camera/NFC functionalities to meet various application needs.
-
Heavily Customized Android
The value-added features of the NLS-MT65, including application protection and admin tool, seek to shore up Android’s data security.
-
Rugged Construction
The NLS-MT65’s rugged housing is sealed to IP65 standards for protection against dust and water and withstands 1.2m drops to concrete.
-
Superior Barcode Reading Performance
When equipped with Newland’s fifth-generation UIMG®technology, the new NLS-MT65 can decode even poorer quality barcodes, such as soiled or wrinkled labels, with ease
Minimum Order Quantity: 1 Piece
Product Brochure
Performance
|
Processor | 2.0GHz octa-core 64-bit processor | |
Operating System | Android 11 | ||
Memory | 4GB RAM, 64GB ROM | ||
Interface | Micro USB 2.0 OTG at the bottom, 8 pin extended contact on the back. |
Physical
|
Dimensions | Maximum Size: 155 × 78 × 20mm; Handheld Size: 155 × 76 × 18mm |
|
Weight | 270g (including battery) | ||
Display | 5” (1280×720) capacitive touch screen | ||
Keypad | 10 keys (side keys included) | ||
Notification | Vibration, speaker and multi-color LEDs | ||
Battery | 3.8V, 4500mAh | ||
Camera | Front camera(optional): 2 megapixels Rear camera:8 megapixels, auto focus, with LED flashlight |
||
GPS | GPS (AGPS), GLONASS, Beidou | ||
Expansion | Micro SD card (max. 128GB) slot | ||
AC Adapter | Output: DC5V, 2.0A Input: AC100~240V, 50~60Hz |
Environmental
|
Operating Temperature | -20°C to 60°C (-4°F to 140°F) | |
Storage Temperature | -40°C ~+85°C (-40°F to 185°F) | ||
Humidity | 5%~95% (non-condensing) | ||
Static Discharge | ±15 kV (air discharge), ±8 kV (direct discharge) | ||
Drop | 1.5m drops to concrete (for six sides, one drop per side) | ||
Tumble Spec. | 0.5m, 10 times/min, 500 times(250 tumbles) | ||
Sealing | IP65 or IP67 (optional) |
Barcode Scanning
|
1D Barcode CMOS (≥ 5 mil) | 1D: Code128, UCC/EAN-128, AIM-128, EAN-8, JAN-8, EAN-3, ISBN/ISSN, UPC-E, UPC-A, Interleave2/5, ITF-6, ITF-14, Deutsche14, Deutsche12, COOP25, Matrix2/5, Industrial2/5, Standard25, Code39, Codabar/NW7, Code93, Code 11, Plessey, MSI/Plessey, GS1 Databar, etc. |
|
2D Barcode CMOS (≥ 5 mil) | 2D: PDF-417, QR Code, Data Matrix, Chinese Sensible Code, Aztec, Maxicode, etc. |
Depth of Field
|
Depends on Barcode Type and Environment | Code39(20mil) 90mm-600mm; EAN13(13mil) 60mm-420mm Code39(5mil) 102mm-205mm; DM(10mil) 110mm-275mm PDF417(6.7mil) 90mm-173mm; QR(15mil) 40mm-230mm |
|
NFC
|
13.56MHz RFID | ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693 |
Wireless
|
WLAN RADIO | IEEE 802.11 a/b/g/n, 2.4GHz and 5GHz | EU: IEEE 802.11 a/b/g/n/ac, 2.4GHz and 5GHz |
WWAN RADIO | 2G: GSM (850/900/1800/1900MHz); 3G: WCDMA: B1/B2/B4/B5/B8; CDMA 1x/EVDO: BC0/BC1 4G: FDD-LTE: B1/B2/B3/B4/B7/B12/B13/B17; TDD-LTE: B41 |
EU: 2G: GSM (850/900/1800/1900MHz); 3G: WCDMA: B1/B2//B5/B8; TD-SCDMA 1x/EVDO: B34/B39; CDMA 1x/EVDO: BC0 4G: FDD-LTE: B1/B2/B3/B5/B7/B8/B20/B28; TDD-LTE: B34/B38/B39/B40/B41 |
|
WPAN RADIO | Bluetooth 5.0 (backward-compatible) |
Certifications
|
Certificates & Protection | FCC Part15 Class B, CE EMC Class B |
Optional
|
Optional | AC adapter, cable, battery, charging cradle, wrist lanyard, trigger handle, RFID handheld reader, long-range barcode reader, protective sleeve, etc. |

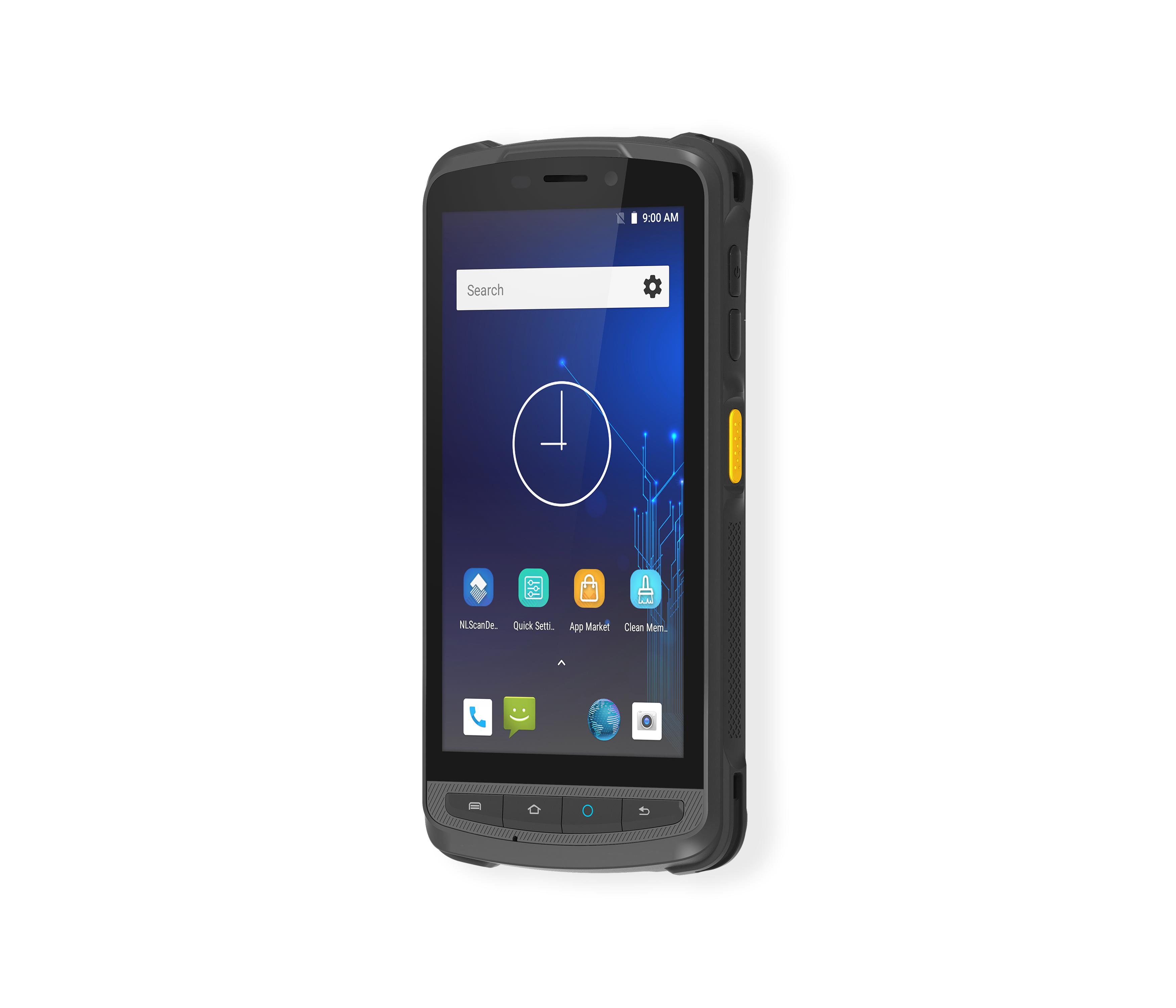

Features:
-
5” Multi-color Capacitive Touch Screen
The NLS-MT90 Mobile Terminal with tempered glass and IPS display boasts a good viewing angle and is quite legible for indoor and outdoor use.
-
Diverse Functionalities
Beyond the flexibility of its dual SIM card system, the NLS-MT90 offers Bluetooth/1D/2D/BT/Wi-Fi/4G/3G/GPS/Camera/NFC functionalities to meet various application needs.
-
Industrial-grade Durability
The NLS-MT90’s rugged housing is sealed to IP65 standards for protection against dust and water and withstands 1.5m drops to concrete.
-
Superior Barcode Reading Performance
Armed with Newland’s sixth-generation of technology and its state-of-the-art 2D mega-pixel engine, the new NLS-MT90 can decode even poorer quality barcodes, such as soiled or wrinkled labels, with ease.
Minimum Order Quantity: 1 Piece
Product BrochureData Capture | |
1D | All major 1D symbologies |
2D | All major 2D symbologies |
Image Sensor | 1280x800 CMOS |
Illumination | White LED (625±10nm) |
Aiming | Laser diode |
Scan Modes | Trigger Mode, Sense Mode |
Scan Rate | 60 frames per second |
Performance | |
Operating System | Android 11 - GMS |
Processor | 2.0GHz octa-core 64-bit |
Memory RAM | 4GB |
Memory Flash | 64GB |
Memory Storage Expansion (max.) | Micro SD card (max. 128GB) |
Physical | |
Dimensions (mm) | 155(L) × 78(W) × 20(H)mm |
Weight | 270g (including battery) |
Display | 5” full colour (1280×720) |
Touch Panel | Capacitive touch screen |
Keypad | 10 keys (side keys included) |
Buttons | Side Keys Volume+, Volume-, Left Scan Key, Right Scan Key, Power Button, Function Key, Keypad (4 Keys) |
Interfaces | USB-C |
Battery Type | 3.8V, 4500mAh |
Expected Battery Life | 10 hours |
Expected Charge Time | 5 hours (charge via AC adapter) |
Notifications | Vibrator, speaker and multi-color LED |
Power Supply Input | DC5V, 2A |
Power Supply Output | AC100~240V, 50~60Hz |
Audio | Microphone / speaker |
Audio Jack | 3.5mm earphone |
Pogo Pin | √ |
Expansion Slot | Micro SD card (max. 128GB) |
Camera | 8 megapixels, auto focus, with LED flashlight |
SIM | Dual SIM: 1 SIM card, 1 Micro SIM Card |
Environmental | |
Operating Temperature | -20℃ to 55℃ (-4°F to 131°F) |
Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
Humidity | 5% to 95% (non-condensing) |
Electro Static Discharge (ESD) | ±15 kV (air discharge), ±8 kV (direct discharge) |
Drop | 1.5m, 1.8m with rubber boot |
IP Rating | IP65 |
Wireless | |
WWAN RADIO | 2G: GSM:850/900/1800/1900MHz; 3G: WCDMA: B1/B2/B5/B8; TD-SCDMA: B34/B39; CDMA 1x/EVDO:BC0; 4G: FDD-LTE: B1/B2/B3/B5/B7/B8/B20/B28; TDD-LTE: B34/B38/B39/B40/B41 |
WLAN RADIO | IEEE 802.11 a/b/g/n/ac, 2.4GHz and 5GHz |
WPAN RADIO | Bluetooth 5.0 (backward compatible) |
RFID | 13.56MHz RFID ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693 |
GPS | GPS (AGPS), GLONASS |
Accessories | |
Standard | Battery, AC adapter, USB cable, Rubber Boot |
Optional | Charging Cradle, Pistol Grip, Long Range Pistol Grip, UHF Pistol Grip, Wrist Strap, Hand Strap, 3 Slot Cradle, 4 Slot Battery Charger, High Capacity Battery |
Software | |
MDM (certified) | Ndevor, SOTI, Airwatch |
Terminal Emulation (compatible) | StayLinked, Ivanti Velocity |
Configuration Tools | Ndevor |
Certifications | |
Hardware | CE RED, FCCID, RoHS, IEC6247, Laser safety (Class II) |
Warranty | |
Standard | 2 years |

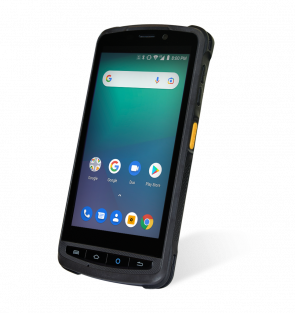

Features:
Full touchscreen mobile computer.
The MT90 Orca III is an Android mobile computer that packs all of the
latest hardware in a modern and user-friendly design. It is a light and durable
device with a 5” capacitive touch screen. Equipped with a familiar user
interface and the exterior of a consumer phone, the MT90 Orca III is easy to
set up and use right out of the box.
Megapixel barcode scanning.
Developed for quick and efficient barcode scanning, the MT90 Orca III ensures
maximum productivity. Its megapixel scan engine is built in at the top of the
device and can be triggered with a virtual button on the screen or a physical
button on the side of the device for easy point-and-shoot scanning.
Reliable all day use with a replaceable battery.
The MT90 Orca III has a 3.8V 4500 mAh battery that allows you to use the device
all day without problem. Additionally, the battery is replaceable, allowing you
to use a spare battery if needed.
Business-class durability.
The MT90 Orca III is built to withstand dusty environments and inevitable
bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m,
or 1.8m with a rubber boot, ensuring longer and more reliable use.
GMS.
The MT90 Orca III offers Google Mobile Services (GMS) with integrated Google
applications such as Gmail, Google Maps and Google Play Store.
Accessories that match your operations.
A wide range of accessories for the MT90 Orca III are included in the package,
namely: single slot charging & communication (USB) cradle, rubber boot,
hand strap and wrist lanyard. Pistol grip, UHF pistol grip, long-range pistol
grip and holsters are optional.

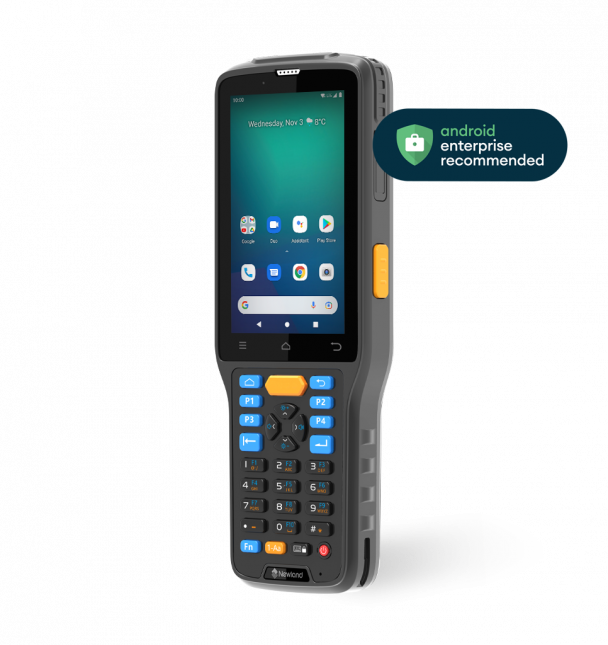

Minimum Order Quantity: 1 Piece
Product BrochureData Capture | |
1D | All major 1D symbologies |
2D | All major 2D symbologies |
Image Sensor | 1280x800 CMOS |
Illumination | White LED (625±10nm) |
Aiming | Laser diode |
Scan Modes | Trigger Mode, Sense Mode |
Scan Rate | 60 frames per second |
Depth of Field EAN 13 (13mil) | SR: 40-480mm; MR: 130-705mm |
Depth of Field Code 39 (5mil) | SR: 80-350mm; MR: 200-575mm |
Depth of Field PDF417 (6.67mil) | SR: 60-320mm; MR: 175-550mm |
Depth of Field DataMatrix (10mil) | SR: 55-355mm; MR: 185-520mm |
Depth of Field QR (15mil) | SR: 50-400mm; MR: 195-550mm |
Performance | |
Operating System | Android 10 - GMS, Android Enterprise Recommended (AER) |
Processor | Qualcomm Snapdragon 1.8GHz main frequency |
Memory RAM | 4GB |
Memory Flash | 64GB |
Memory Storage Expansion (max.) | Micro SD/TF card (max. 128 GB) |
Physical | |
Dimensions (mm) | 200(H) x 70(W) x 29(0) mm (pistol grip 58mm) |
Weight | 360g (including battery) |
Display | 4.0" WVGA I PS screen with Gorilla Glass, resolution 480x800, supports input with gloves |
Keypad | 29, 38 or 47 physical buttons, white backlight function |
Buttons | Two scan buttons (left/right), three touch navigation keys |
Interfaces | Quick charging (QC) 3.0, Type-C port, 9V/2A |
Battery Type | 3.8V, 5100 mAh, removable |
Expected Battery Life | Scanning:> 15 hours of continuous operations; standby: 500 hours |
Notifications | Vibrator, speaker, and mulit-color LED |
Power Supply Input | AC 100~240V, 50~60Hz |
Power Supply Output | Type-C 9V/2A,15V/l.2A |
Sensors | Gravity Sensor, Hall Switch |
Expansion Slot | MicroSD card (max. 128GB) |
Camera | 13 Megapixels, PDAF, with LED flashlight |
SIM (4G configurations only) | Nano+Nano or Nano+TF |
Environmental | |
Operating Temperature | -20℃ to 55℃ |
Storage Temperature | -40°C to 70°C |
Humidity | 5% to 95% (non-condensing) |
Electro Static Discharge (ESD) | ±8 KV (direct discharge); ±15 KV (air discharge) |
Drop | 1.8m |
IP Rating | IP65 |
Wireless | |
WWAN Radio (4G configurations only) | 2G: GSM: 850/900/1800/1900MHz; 3G: WCDMA: Bl/B2/BS/B7/B8/ B20/B28a&b, CDMA lx/EVDO: BCO; 4G: FDD-LTE: Bl/B2/B3/BS/B7/B8/B20/B28a&b, TDD-LTE; B38/B39/B40/B41 (100M) |
WLAN RADIO | 802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, support 2.4G and 5G dual frequency; Roaming: Super Fast Roaming |
WPAN RADIO | Dual mode, Bluetooth 4.2+LE (backward compatible) |
RFID | NFC: 13.36MHz IS014443A/B, Ml FARE, Felica, NFC Forum Tags |
GPS (4G configurations only) | Beidou, Galileo, GLONASS, GPS (AGPS) |
Accessories | |
Standard | Hand strap, USB cable, battery and multi-plug adapter (supports fast charging) |
Optional | Single cradle, pistol Grip, 4-slot battery charger, screen protection film |
Software | |
MDM (certified) | Ndevor, SOTI, Airwatch |
Terminal Emulation (compatible) | StayLinked, Ivanti Velocity |
Configuration Tools | Ndevor |
Certifications | |
Hardware | CE-RED, FCC, BIS, RoHS2.0, REACH, AER, SOTI, UN38.3, IEC62471; Laser Safety: IEC60825 |
Warranty | |
Standard | 2 years |
Features:
Newland’s best screen technology.
The 4” HD screen has a high transparency and low reflectivity to give crystal
clear images, even in sunlight. The touchscreen responds when wearing gloves
and maintains sensitivity even when wet. For added protection, Gorilla Glass 3
makes the N7 Cachalot Pro tougher and more damage resistant, making the device
the perfect companion in rough environments.
Android Enterprise Recommended (AER).
The N7 Cachalot Pro carries Google’s AER seal of approval, signaling it keeps
pace with performance and security upgrades to its operating system and core
functionality. This label, in combination with Newland’s free MDM Ndevor,
enables clients to maintain secure visibility and control over their devices
regardless of location.
Fast charging, high-capacity and hot-swappable battery.
The N7 Cachalot Pro supports fast charging for its 5100mAh battery and is
hot-swappable. This keeps your program running and your wifi connected, even
when taking the battery fully out to exchange it with a new one.
Near and far scanning, acuscan and multi-read mode
The N7 Cachalot Pro offers a choice of megapixel 2D scan engine. The
Standard-range version with acuscan provides standard, accurate scanning on
codes close-up or smaller items. Alternatively, the Mid-range version is
capable of reading codes on boxes and pallets from further away. Both scanners
offer Newland’s multi-read mode.
Daisy chain charging.
The single cradle is designed to link to up to 3 additional cradles (4 in
total), to limit the number of power outlets needed to charge units.
The keys to unlock applications.
The N7 Cachalot Pro is designed to allow tailoring to many different
applications for which a physical keyboard is still preferred. It offers the
flexibility to choose between a 29, 38 and 47 keypad option (not including side
scan buttons). Each of the three configurations are back-lit for high
visibility in dark work environments.
Seen and heard.
The applications most suited to the N7 Cachalot Pro are often in noisy
environments. To accommodate for this, sound notifications can be adjusted to
reach up to 90 decibels. When sound is not wanted, or instead, enough on its
own, the device has vibration and a LED color feedback.
